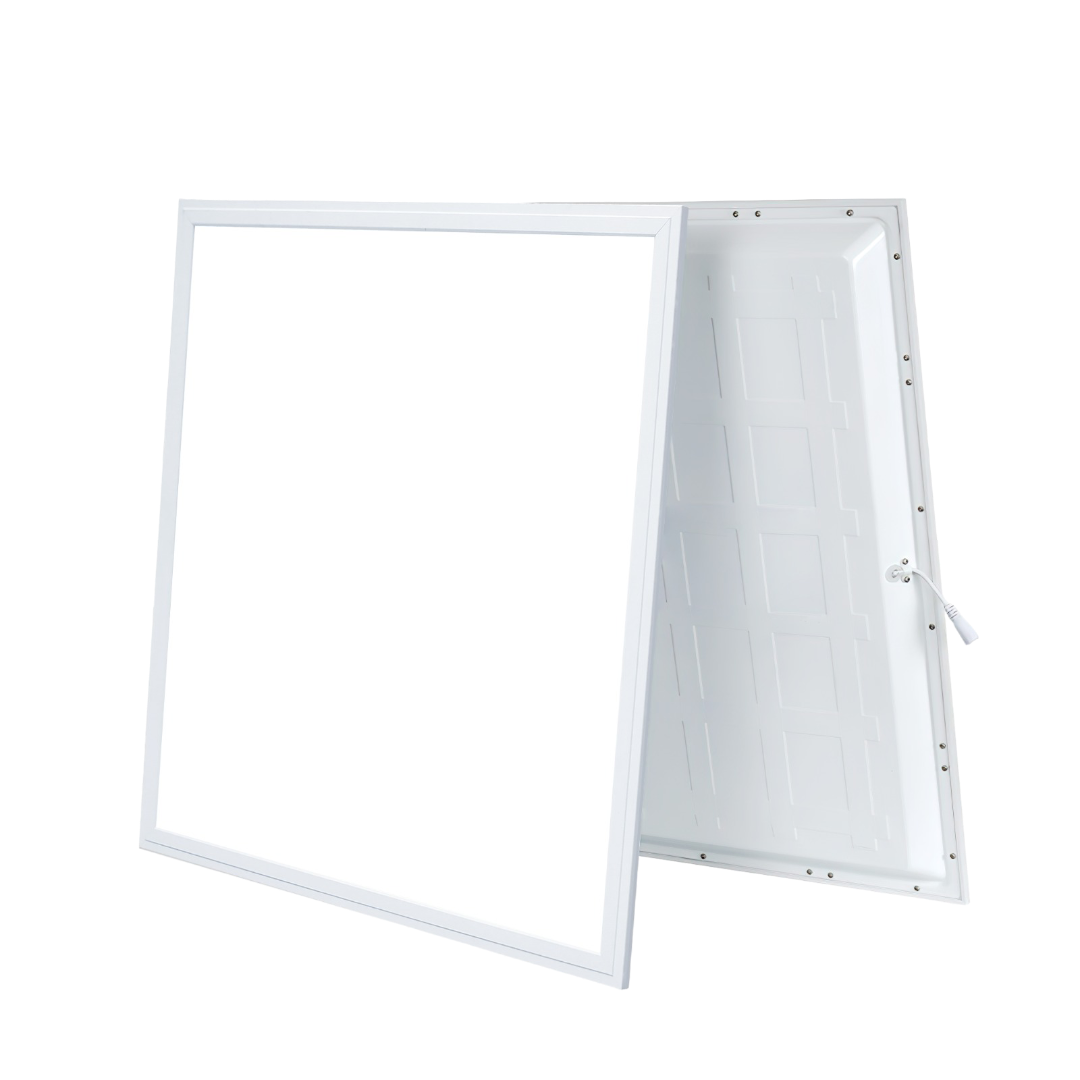

Helios 26W 600x600 UGR19 LED Panel

Helios 26W 600 x 600 UGR<19 LED Panel is a low-glare office panel designed for modern workplaces, schools and commercial interiors. With UGR<19 compliance and a slim 600 x 600mm form factor, it delivers comfortable, even illumination for screen-based environments.

Helios panels are a great choice for CAT-B fit outs and refurbishments where visual comfort, efficiency and fast installation are important.

The Helios 26W 600×600 LED Panel from Seven ACE is a low-glare, high-efficiency panel designed for modern commercial ceilings. With UGR≤19 for visual comfort and switchable colour temperature (4000K / 5000K / 6000K), it’s ideal for offices, classrooms, healthcare spaces and other environments where people spend long hours under artificial lighting. Supplied by LEDHut with a 5-year warranty and a flicker-free Lifud driver, it delivers reliable performance and a clean, professional finish.

Key Features

• Low-Glare UGR≤19: Helps reduce eye strain in offices, classrooms and meeting rooms.
• Switchable CCT: Select 4000K, 5000K or 6000K at installation to suit each workspace.
• High Efficiency: Around 3,640 lumens from just 26W (approx. 140 lm/W).

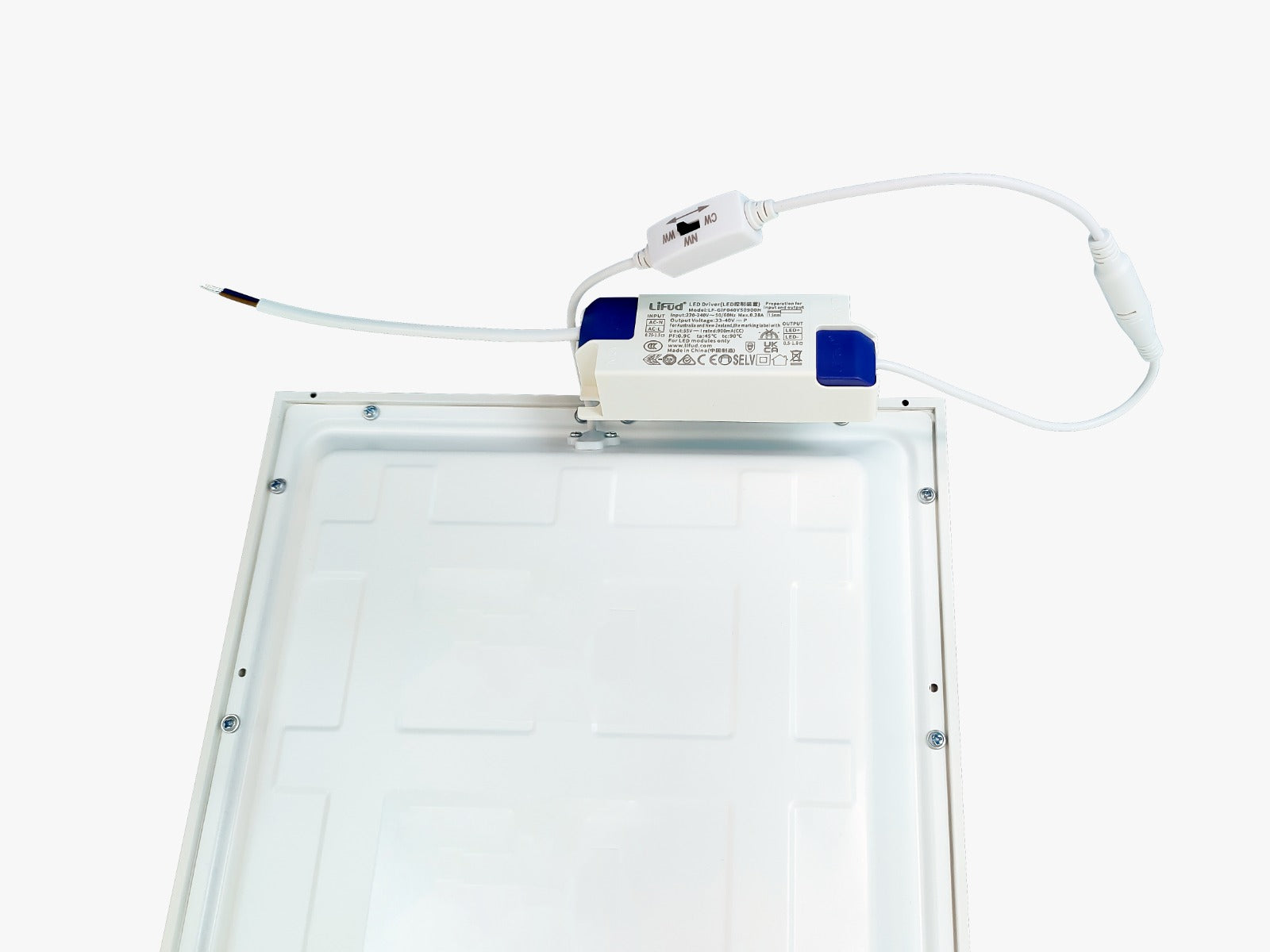

• Flicker-Free Driver: Supplied with a Lifud driver featuring a quick-connect terminal for faster installs.
• Slim 600×600 Format: Fits standard T-bar grid ceilings for straightforward retrofits.
• TP(a) Rated Diffuser: Suitable for commercial use in line with common building requirements.
• Clean White Finish: RAL 9016 frame for a modern look in offices and public buildings.
• Long Life & Warranty: 50,000-hour design life and 5-year LEDHut-backed warranty.

Technical Specification

Ideal Applications

• Open-plan and cellular offices
• Classrooms, lecture rooms and training spaces
• Healthcare and clinical areas
• Reception areas and corridors
• General commercial and public buildings

Why Buy from LEDHut?

LEDHut is a long-established UK lighting retailer with thousands of verified customer reviews. When you buy Seven ACE Helios panels from LEDHut, you get commercial-grade fittings backed by UK-based support, clear warranty cover and fast delivery options. Our team can also help you match drivers, emergency kits and accessories across your project.

FAQs

Is this panel suitable for office lighting standards?

Yes. With a UGR≤19 rating, this panel is designed to support comfortable lighting in offices and similar visual task areas when used as part of a suitable lighting design.

How do I choose the colour temperature?

The panel has a switch on the driver that lets the installer select 4000K, 5000K or 6000K during installation. It should be set before the ceiling is closed.

Can this be surface mounted?

Yes, when used with a compatible 600×600 surface-mount frame (sold separately). It can also be suspended using a panel suspension kit.

Does it work with emergency kits?

Yes, this panel can be paired with a suitable LED panel emergency conversion kit. Check the kit specification to ensure compatibility with 26W panels.

Recommended Accessories

• 600×600 surface-mount frame for solid ceilings
• Suspension kit for hanging panel installations
• LED panel emergency conversion kit
• Additional Helios panels for matching corridors and adjoining rooms

Specifications

• Wattage: 26W
• Panel size: 600 x 600mm
• Glare rating: UGR<19
• Application: Offices, schools, commercial interiors
• Lifetime: Up to 50,000 hours (typical)
• Warranty: 5 Years
